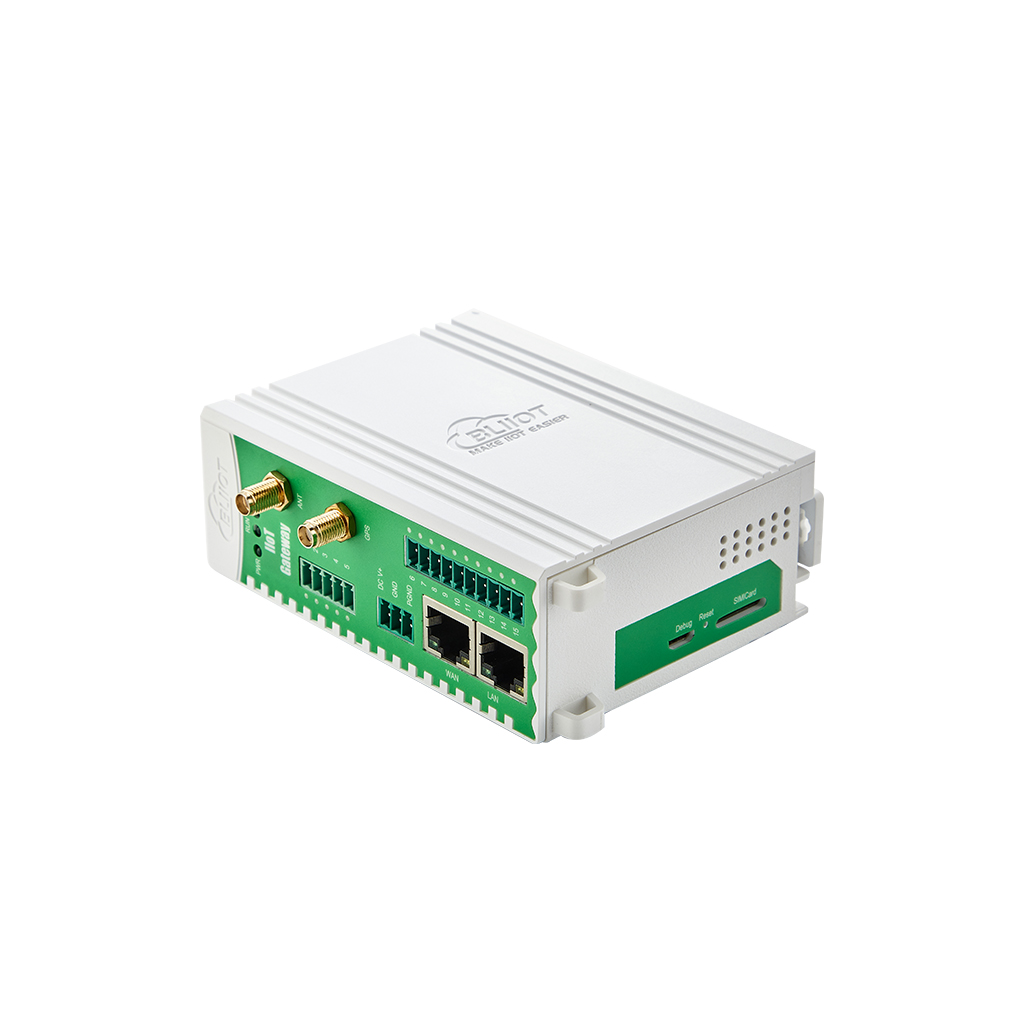

BE113
Through the IEC104 to MQTT protocol gateway BE113, power system operators can make full use of the lightweight, efficient and flexible features of the MQTT protocol to seamlessly integrate real-time operation data into the cloud IoT platform, achieving smarter equipment management, fault diagnosis, predictive maintenance and more advanced data analysis, thereby improving operational efficiency and reliability.
System
| Processor | Clock speed 300Mhz |
|---|
| Storage | 128MB |
|---|
| Flash Memory | 64MB |
|---|
Power Supply
| Input Voltage | DC 9～36V |
|---|
| Power Consumption | Normal: 70mA@12V, Max: 168mA@12V |
|---|
| Wiring | Anti-reverse connection protection |
|---|
Ethernet Port
| Specification | 2 x RJ45, 10/100Mbps, adaptive MDI/MDIX |
|---|
| Protection | ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|---|
Serial Port
| QTY | 2CH or 6CH RS485/RS232 |
|---|
| Baud Rate | 2400bps-115200bps |
|---|
| Data Bit | 7,8 |
|---|
| Parity Bit | None, Even, Odd |
|---|
| Stop Bit | 1, 2 |
|---|
| Protection | ESD: ±6kV(Contact), ±8kV(Air) SURGE ±1kV, 8/20us EFT: 1kV, 5kHz |
|---|

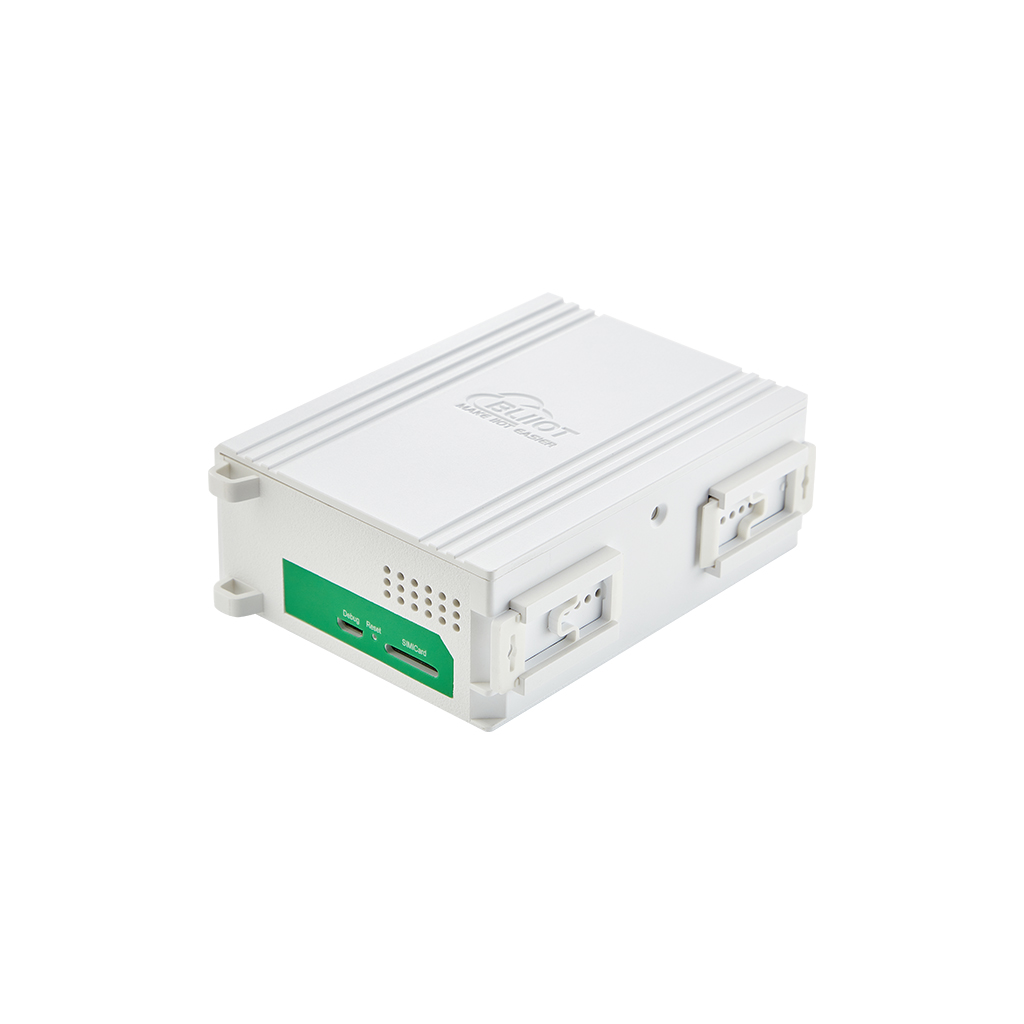

SIM Card Slot
| QTY | 1 |
|---|
| Specification | Drawer type, support 1.8V/3V SIM/UIM card(NANO) |
|---|
| Protection | Built-in 15KV ESD protection |
|---|
USB Port
| QTY | 1xMini USB |
|---|
| Protection | Over current protection |
|---|
4G (Optional)
| Antenna QTY | 1 |
|---|
| Antenna Type | SMA Hole |
|---|
GPS (Optional)
| Antenna QTY | 1 |
|---|
| Antenna Type | SMA Hole |
|---|
| Tracking Sensitivity | > -148 dBm |
|---|
| Flat Position Precision | 2.5m |
|---|
| Protocol | NMEA-0183 V2.3 |
|---|
WiFi (Optional)
| QTY | 1 |
|---|
| Type | SMA |
|---|
| Protocol | 802.11a/b/g/n (mixed) |
|---|
| Mode | Client Mode |
|---|
| Channel | 2.4G Channel 1 - 13，5G Channel 36 - 165 |
|---|
| Security | Security |
|---|
| Encrypted | AES, TKIP, TKIPAES |
|---|
| Speed | 150Mbps (Max) |
|---|
| Distance | Unobstructed/open outdoor coverage up to 20 meters |
|---|
| SSID broadcast switch | Support |
|---|

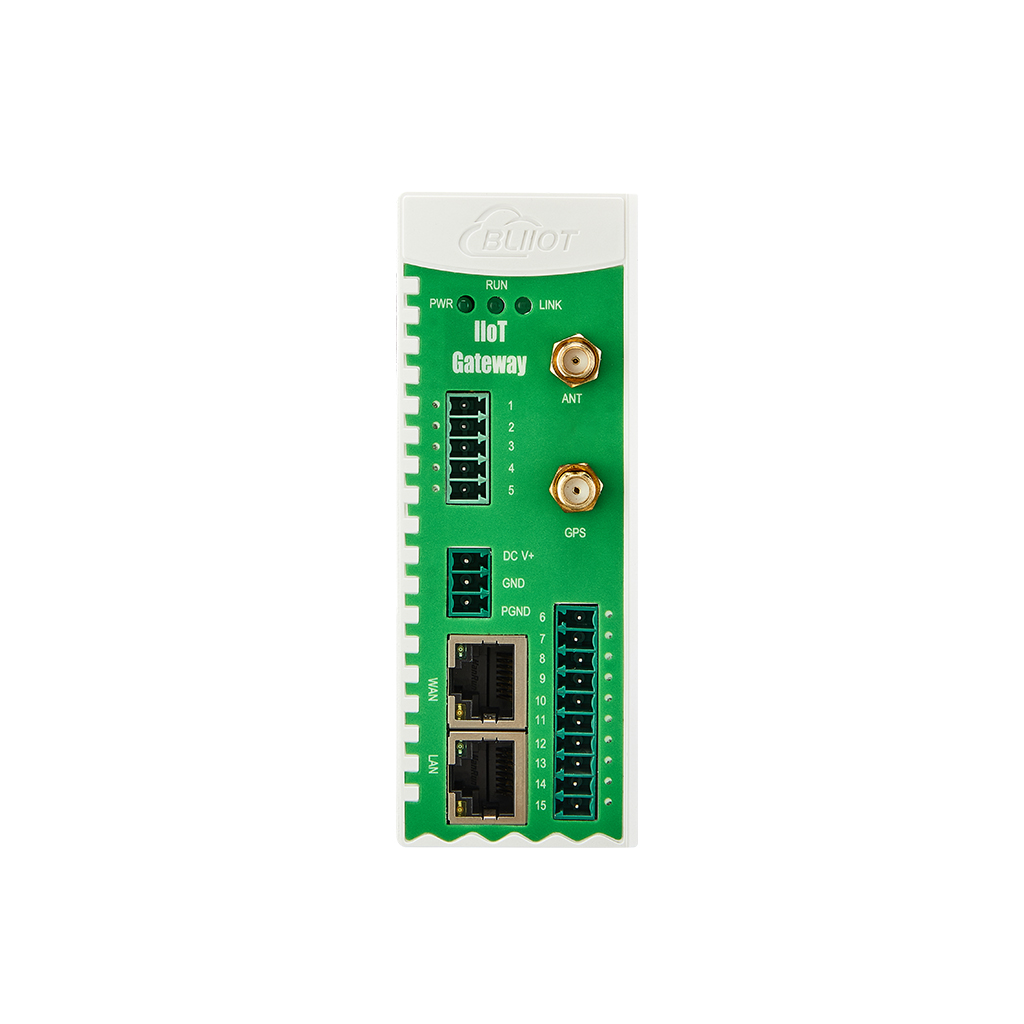

Indicator
| PWR | Always on when device powered on |
|---|
| RUN | Flickering when system running Off when system shutdown |
|---|
| LINK | Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected. |
|---|
Software
| Internet Protocol | IPV4, TCP/UDP, DHCP, DNS, etc |
|---|
| IP Retrieving | Static IP/DHCP |
|---|
| Transparent Transmission | Support |
|---|
| DNS | Support Domain Name resolution |
|---|
| Configuration | PC software configuration, support WIN 7, WIN 8, WIN 10 and WIN11 |
|---|
| Network Cache | Transmitting: 8Kbyte; Receiving: 8Kbyte |
|---|
Safety Regulations
| EMC | CE, FCC |
|---|
| EMS | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge)Level 3 |
|---|
| Vibration | IEC60068-2-6 |
|---|
Environment
| Working | -40～85℃, 5～95% RH |
|---|
| Storage | -40～85℃，5～95% RH |
|---|
Others
| Housing Material | Plastic |
|---|
| Size | 40×83×110mm/30×83×110mm (LxWxH) |
|---|
| Protection | IP30 |
|---|
| Net Weight | 171g/133g |
|---|

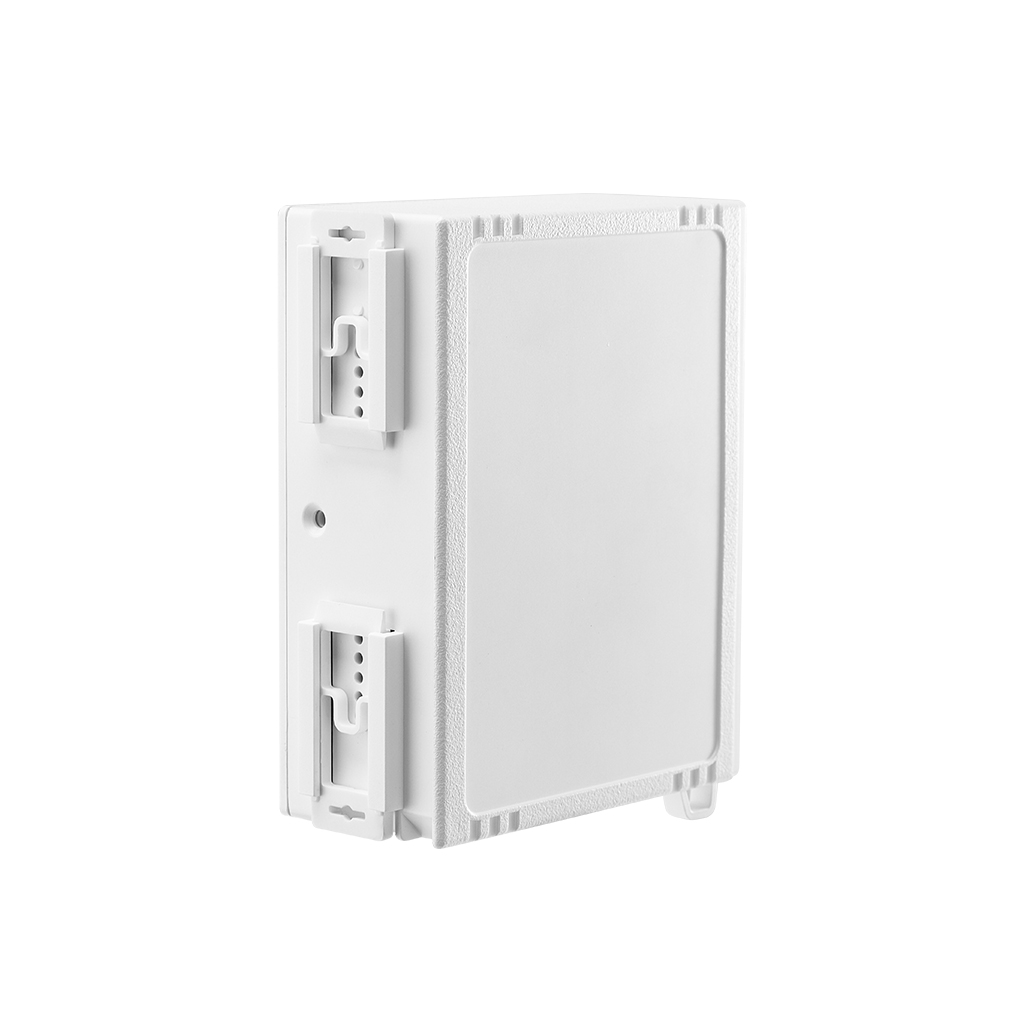

| Mounting | DIN Rail Mounting/Wall-mounting |
|---|
| Communication | Ethernet, 4G, WiFi |
|---|
| Downlink Protocol | DL/T645, IEC104, Modbus RTU, Modbus TCP |
|---|
| Uplink Protocol | MQTT |
|---|
| Serial Port | 2CH or 6CH RS485/RS232 |
|---|
| Baud Rate | 2400bps-115200bps |
|---|
| Ethernet Port | 1 WAN + 1 LAN |
|---|
Supply information
| Manufacturer | BLIIoT — Beilai Technology Co., Ltd. |
|---|
| Model code | BE113 |
|---|
| Full name | BE113 | DLT645 · IEC104 to MQTT Power Grids IoT Gateway |
|---|
| Category | IEC104 gateways |
|---|
| Supplied in Korea by | ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea |
|---|
