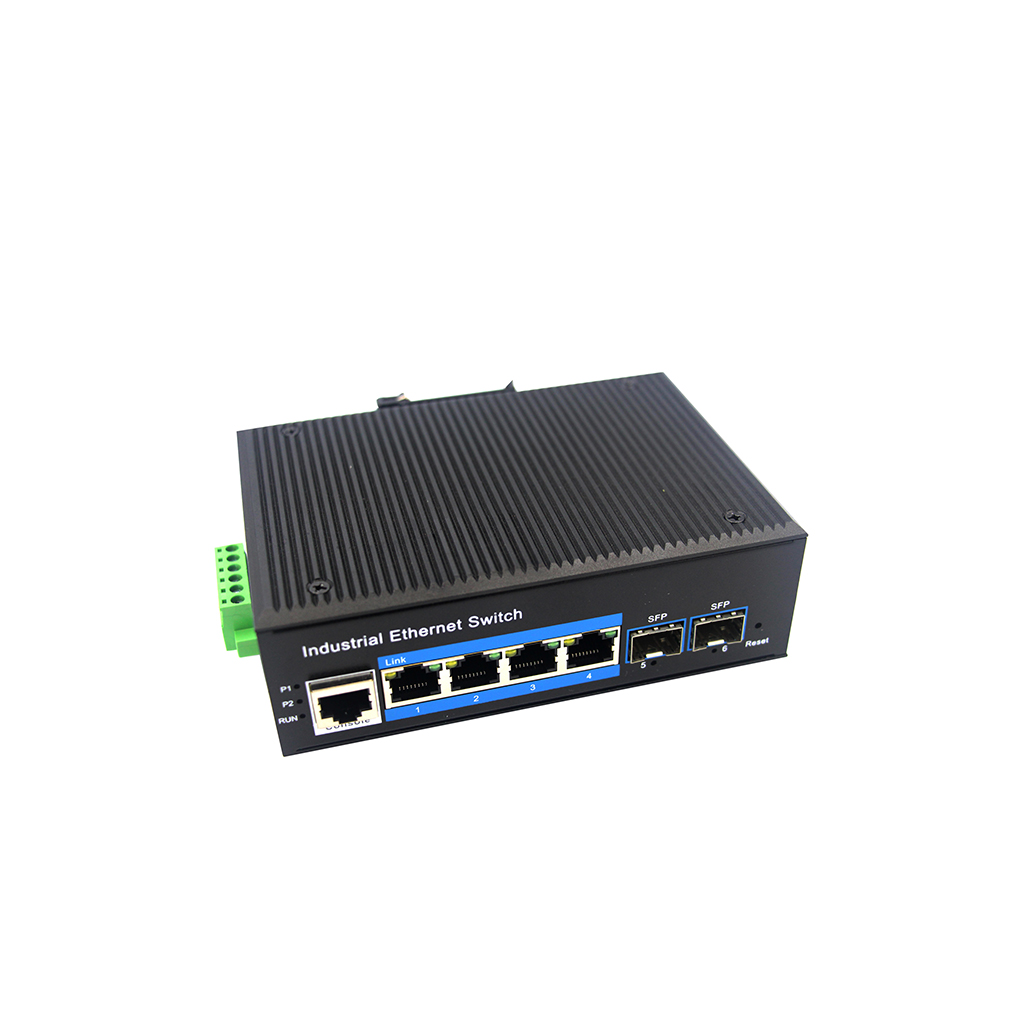

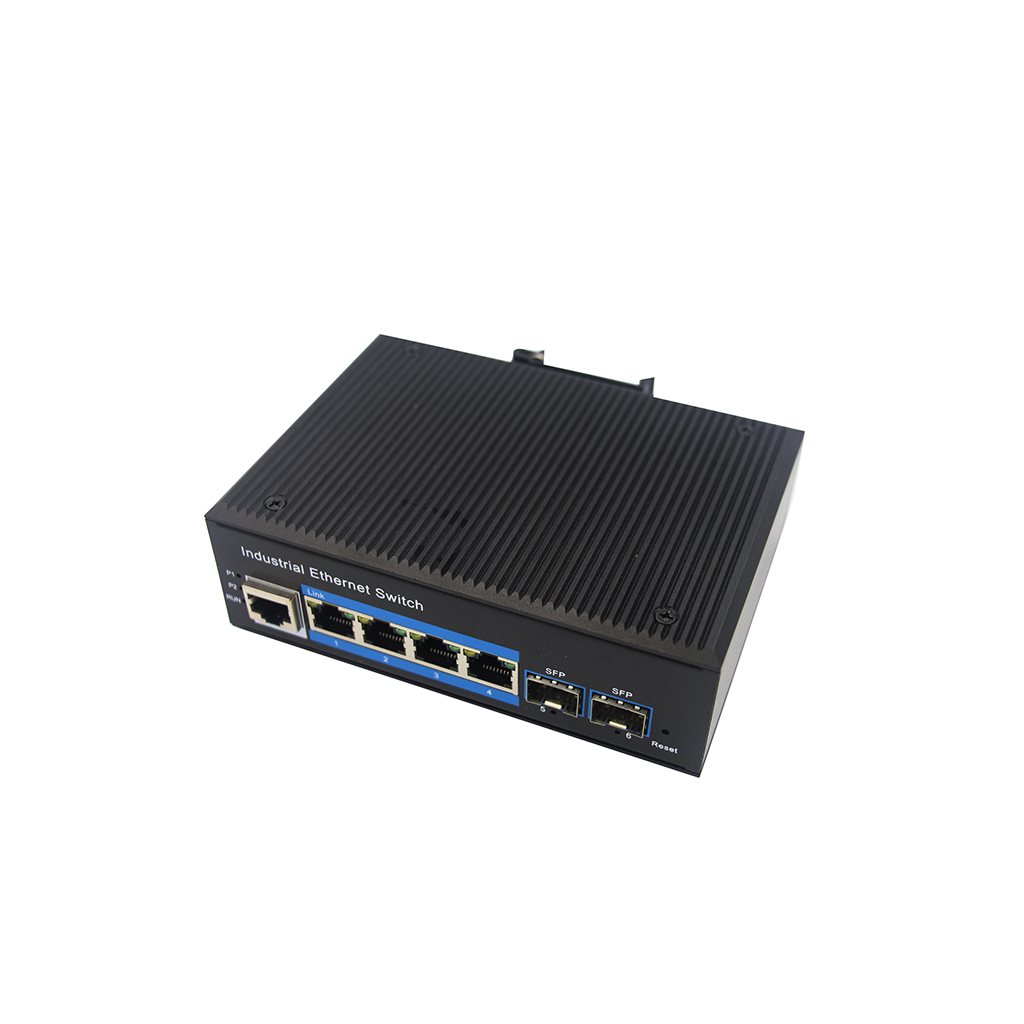

BL167GMP-SFP
2 Optical + 4 Electrical Gigabit Managed PoE Switch
BL167GMP-SFP is a managed industrial PoE Ethernet switch featuring 2 Gigabit SFP ports and 4 Gigabit PoE ports, compliant with FCC, CE, and RoHS standards. It supports essential Layer 2 Ethernet protocols for reliable industrial communication. Designed with a fanless, low-power structure, it offers quiet operation, wide -40°C to +75°C temperature tolerance, and strong EMC performance.
Power
| Power Input | DC48-57V（Dual Power Redundant Backup） |
|---|
| Access terminal | Phoenix terminal |
|---|
| Dual power redundancy | Support |
|---|
| Built-in overcurrent 4.0A protection | Support |
|---|
| Reverse connection protection | Support |
|---|
LED Indicators
| Power indicator | PWR |
|---|
| Interface indicator | Electric port,Fiber port（Link/ACT） |
|---|
RJ45 Ports
| RJ45 specification | 4xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
|---|
| Standards | IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab、IEEE802.1D-Spanning Tree Protocoll、IEEE802.1w-Rapid Spanning Tree Protocoll、IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Control |
|---|
Fiber Ports
| Fiber ports specification | 2x1000BaseFX ports（SFP） |
|---|
POE Specification
| POE standard | IEEE802.3af/ IEEE802.3at |
|---|
| POE ports | 1-4 port support POE |
|---|
| Power Output | Max. 15.4W (IEEE 802.3af) Max. 30W (IEEE 802.3at) PoE port Auto detect AF/AT devices |
|---|
Ethernet Software Features
| Network security | Support IEEE 802.1x, HTTP, RADIUS, MAC address binding |
|---|
| Management and maintenance | Support Console, Telnet and WEB management modes, and support SNMP v1/v2/v3 |
|---|
| Redundancy technology | Supports STP, RSTP, MSTP, and ERPS |
|---|
| Multicast technology | IGMP snooping、Support static multicast |
|---|
| Exchange function | Support port speed limit support port aggregation support port flow control. Support port VLAN, IEEE 802.1Q VLAN. Support broadcast storm suppression. |
|---|
Switch properties
| Transmission mode | Store-and-forward |
|---|
| Packet Buffer Memory | 12Mbit |
|---|
| Switching delay | <10μs |
|---|
| MAC Address Table | 8K |
|---|
| Bandwidth | 38G |
|---|
| Power dissipation | <5W |
|---|
Certification
| MTBF | 300,000 hours |
|---|
| EMI | FCC Part 15 Subpart B Class A，EN 55022 Class A |
|---|
| EMC | IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) |
|---|
| EMC | IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) |
|---|
| EMC | IEC(EN)61000-4-4(EFT)：±2kV CM//±1kV DM |
|---|
| EMC | IEC(EN)61000-4-5(Surge)：±2kV CM//±1kV DM |
|---|
| EMC | IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) |
|---|
| EMC | IEC(EN)61000-4-16：30V cont. 300V,1s |
|---|
| EMC | IEC(EN )61000-4-8 |
|---|
| EMC | Shock ：IEC 60068-2-27 |
|---|
| EMC | Freefall ：IEC 60068-2-32 |
|---|
| EMC | Vibration ：IEC 60068-2-6 |
|---|
Working Environment
| Working temperature | -40～75 ℃ |
|---|
| Storage temperature | -40～80 ℃ |
|---|
| Relative Humidity | 5%～95%( no condensation） |
|---|
Mechanical properties
| Shell | Metal shell |
|---|
| Dimensions | 143.7x 104x 47.7mm |
|---|
| Protection type | IP40 |
|---|
| Weight | 0.64Kg |
|---|
| Installation method | DIN rail |
|---|
| Heat dissipation mode | Natural cooling, no fan |
|---|
Warranty
| Warranty period | 1 year |
|---|
Supply information
| Manufacturer | BLIIoT — Beilai Technology Co., Ltd. |
|---|
| Model code | BL167GMP-SFP |
|---|
| Full name | BL167GMP | 2 Optical + 4 Electrical Gigabit Managed PoE Switch |
|---|
| Category | Managed industrial switches |
|---|
| Supplied in Korea by | ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea |
|---|
