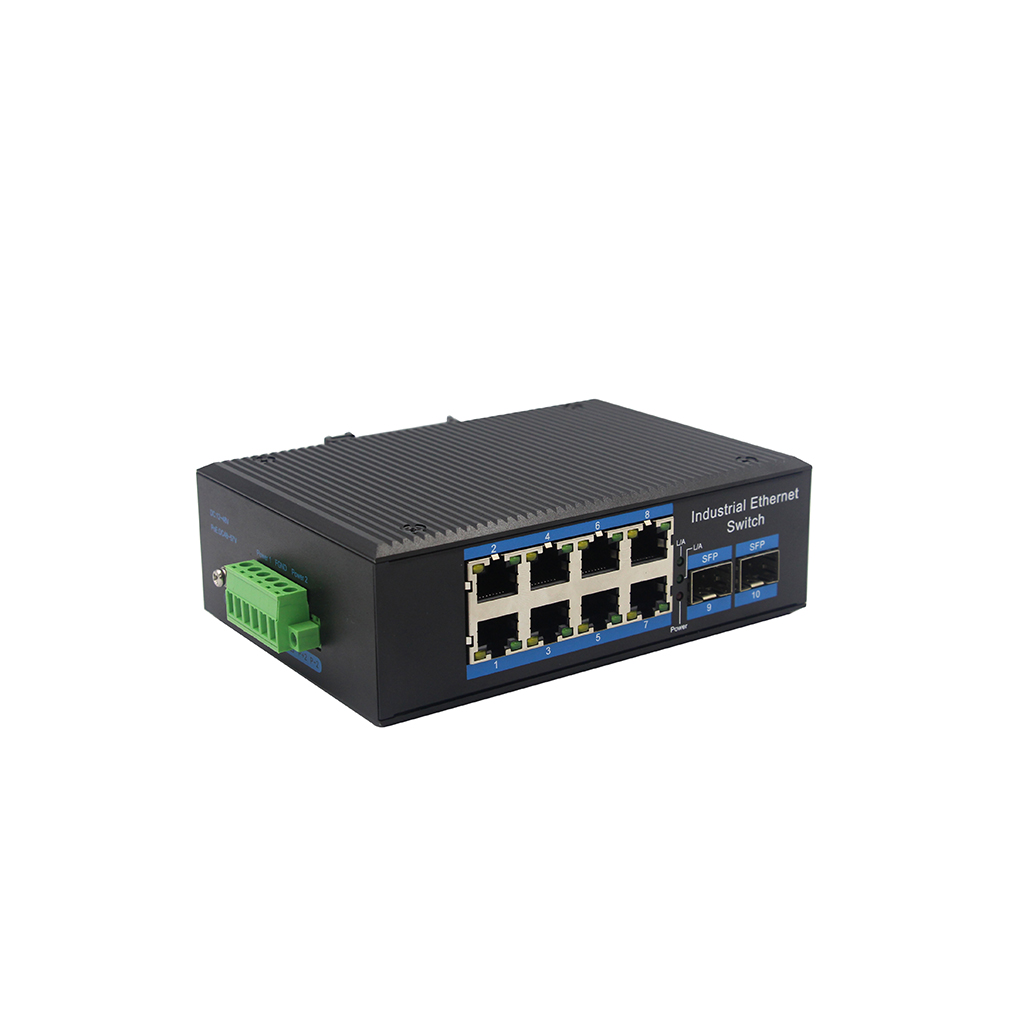

BL168GP
2 Optical + 8 Electrical Gigabit PoE Switch
BL168GP features 8 Gigabit PoE electrical ports (10/100/1000 Mbps) and 2 Gigabit fiber optic ports (1000Base-X), delivering flexible and high-speed networking.
Power
| Power Input | DC48-57V（Dual Power Redundant Backup） |
|---|
| Access terminal | Phoenix terminal |
|---|
| Dual power redundancy | Support |
|---|
| Built-in overcurrent 4.0A protection | Support |
|---|
| Reverse connection protection | Support |
|---|
LED Indicators
| Power indicator | PWR |
|---|
| Interface indicator | Electric port,Fiber port（Link/ACT） |
|---|
RJ45 Ports
| RJ45 specification | 8xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
|---|
| Standards | IEEE802.310BASE-TIEEE802.3i；10Base-T；IEEE802.3u；100Base-TX/FX；IEEE802.3ab1000Base-T；IEEE802.3z1000Base-X；IEEE802.3x； IEEE802.3af；IEEE802.3at |
|---|
Fiber Ports
| Fiber ports specification | 2x1000BaseFX ports（SC/SFP optional） |
|---|
POE Specification
| POE standard | IEEE802.3af/ IEEE802.3at |
|---|
| POE ports | 1-8 electrical port support POE |
|---|
| Power Output | Max. 15.4W (IEEE 802.3af) Max. 30W (IEEE 802.3at) PoE port Auto detect AF/AT devices |
|---|
Switch properties
| Transmission mode | Store-and-forward |
|---|
| Packet Buffer Memory | 2Mbit |
|---|
| Switching delay | <10μs |
|---|
| MAC Address Table | 8K |
|---|
| Bandwidth | 20G |
|---|
| Power dissipation | <8W |
|---|
Certification
| MTBF | 300,000 hours |
|---|
| EMI | FCC Part 15 Subpart B Class A，EN 55022 Class A |
|---|
| EMC | IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) |
|---|
| EMC | IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) |
|---|
| EMC | IEC(EN)61000-4-4(EFT)：±2kV CM//±1kV DM |
|---|
| EMC | IEC(EN)61000-4-5(Surge)：±2kV CM//±1kV DM |
|---|
| EMC | IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) |
|---|
| EMC | IEC(EN)61000-4-16：30V cont. 300V,1s |
|---|
| EMC | IEC(EN )61000-4-8 |
|---|
| EMC | Shock ：IEC 60068-2-27 |
|---|
| EMC | Freefall ：IEC 60068-2-32 |
|---|
| EMC | Vibration ：IEC 60068-2-6 |
|---|
Working Environment
| Working temperature | -40～75 ℃ |
|---|
| Storage temperature | -40～80 ℃ |
|---|
| Relative Humidity | 5%～95%( no condensation） |
|---|
Mechanical properties
| Shell | Metal shell |
|---|
| Dimensions | 143.7x103.8x 47.7mm |
|---|
| Protection type | IP40 |
|---|
| Weight | 0.64Kg |
|---|

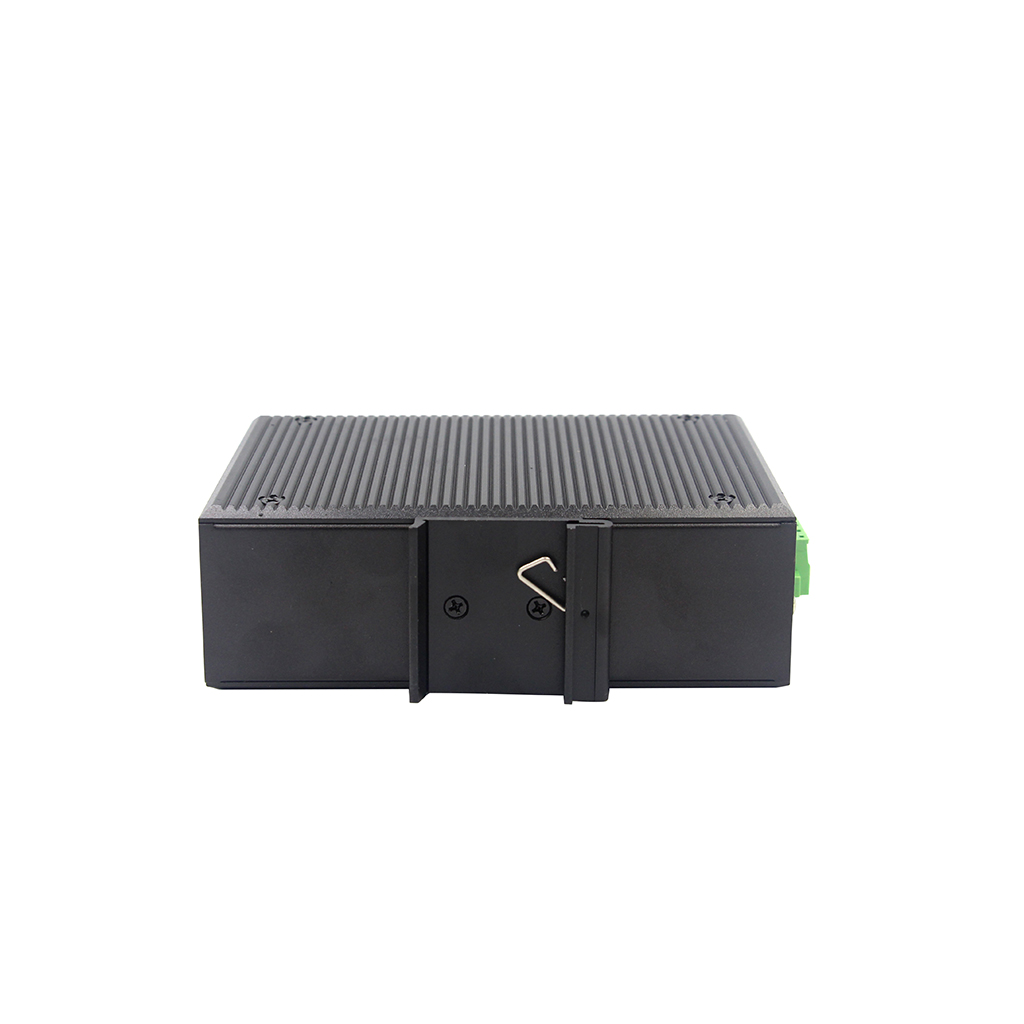

| Installation method | DIN rail |
|---|
| Heat dissipation mode | Natural cooling, no fan |
|---|
Warranty
| Warranty period | 1 year |
|---|
Supply information
| Manufacturer | BLIIoT — Beilai Technology Co., Ltd. |
|---|
| Model code | BL168GP |
|---|
| Full name | BL168GP | 2 Optical + 8 Electrical Gigabit PoE Switch |
|---|
| Category | 8-port PoE switches |
|---|
| Supplied in Korea by | ACUSYS Co., Ltd. · Official BLIIoT distributor in Korea |
|---|
